Convolutional Neural Networks (CNN): Step 1(b) – ReLU Layer

(For the PPT of this lecture Click Here)

The Rectified Linear Unit, or ReLU, is not a separate component of the convolutional neural networks’ process.

It’s a supplementary step to the convolution operation that we covered in the previous tutorial. There are some instructors and authors who discuss both steps separately, but in our case, we’re going to consider both of them to be components of the first step in our process.

If you’re done with the previous section on artificial neural networks, then you should be familiar with the rectifier function that you see in the image below.

The purpose of applying the rectifier function is to increase the non-linearity in our images. The reason we want to do that is that images are naturally non-linear.

When you look at any image, you’ll find it contains a lot of non-linear features (e.g. the transition between pixels, the borders, the colors, etc.).

The rectifier serves to break up the linearity even further in order to make up for the linearity that we might impose an image when we put it through the convolution operation. To see how that actually plays out, we can look at the following picture and see the changes that happen to it as it undergoes the convolution operation followed by rectification.

This black and white image is the original input image.

By putting the image through the convolution process, or in other words, by applying to it a feature detector, the result is what you see in the following image.

As you see, the entire image is now composed of pixels that vary from white to black with many shades of gray in between.

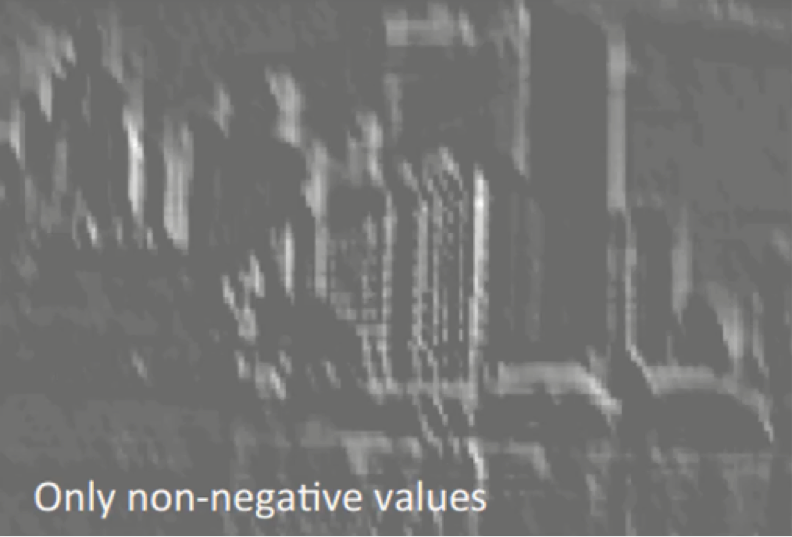

What the rectifier function does to an image like this is remove all the black elements from it, keeping only those carrying a positive value (the grey and white colors).

The essential difference between the non-rectified version of the image and the rectified one is the progression of colors. If you look closely at the first one, you will find parts where a white streak is followed by a grey one and then a black one.

After we rectify the image, you will find the colors changing more abruptly. The gradual change is no longer there. That indicates that the linearity has been disposed of.

You have to bear in mind that the way by which we just examined this example only provides a basic non-technical understanding of the concept of rectification. The mathematical concepts behind the process are unnecessary here and would be pretty complex at this point.

(Continue with Step 2: Max Pooling by Clicking Here)

If you want to look at the concept through a more mathematical lens, you can check out this 2016 paper by C. C. Jay Kuo titled Understanding Convolutional Neural Networks with a Mathematical Model.

If you’re looking to dig even deeper than that, you can move on to this 2015 paper written by Kaiming He and others from Microsoft Research.

The paper is titled Delving Deep into Rectifiers: Surpassing Human-Level Performance on ImageNet Classification. In this paper, the authors propose a modified form of the rectifier function called the Parametric Rectified Linear Unit (PReLU). It’s quite an interesting read if you’re into the topic.
